Description

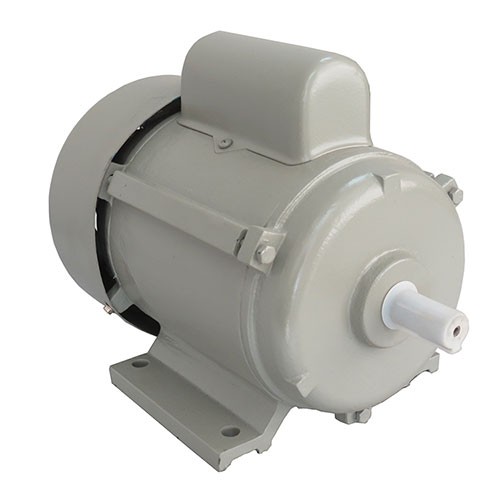

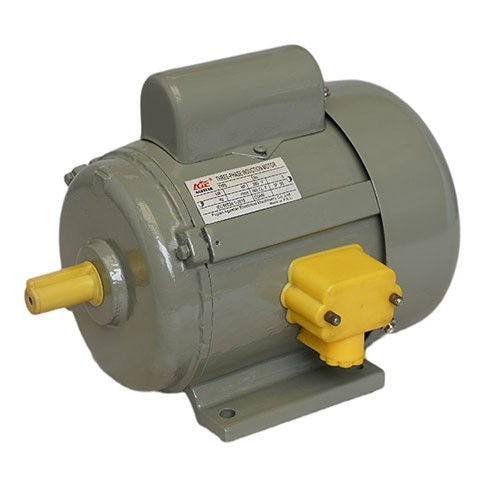

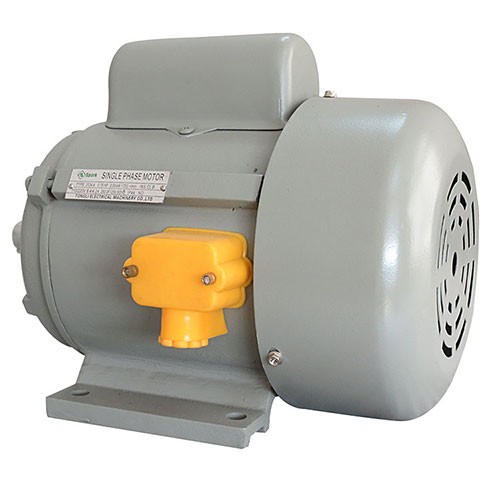

JY SERIES SINGLE-PHASE CAPACITOR START
ASYNCHRONOUS CAST IRON HOUSING MOTOR
FEATURE
JY Series single-phase capacitor start motor.These motors are suitable for the situation that require the higher starting torque and the limited starting current. The motors can be used on driving all kinds of small machine that need full load starting. The motors of this series are totally enclosed and fan cooled, possess No.09,No.1 and No.2 three frame size and with the starting capacitor on the top of the motor.
OPERATING CONDITIONS
Ambient temperature:-15℃≤θ≦40℃
Above sea level: not exceed 1000m
Rated voltage:±5%
