Description

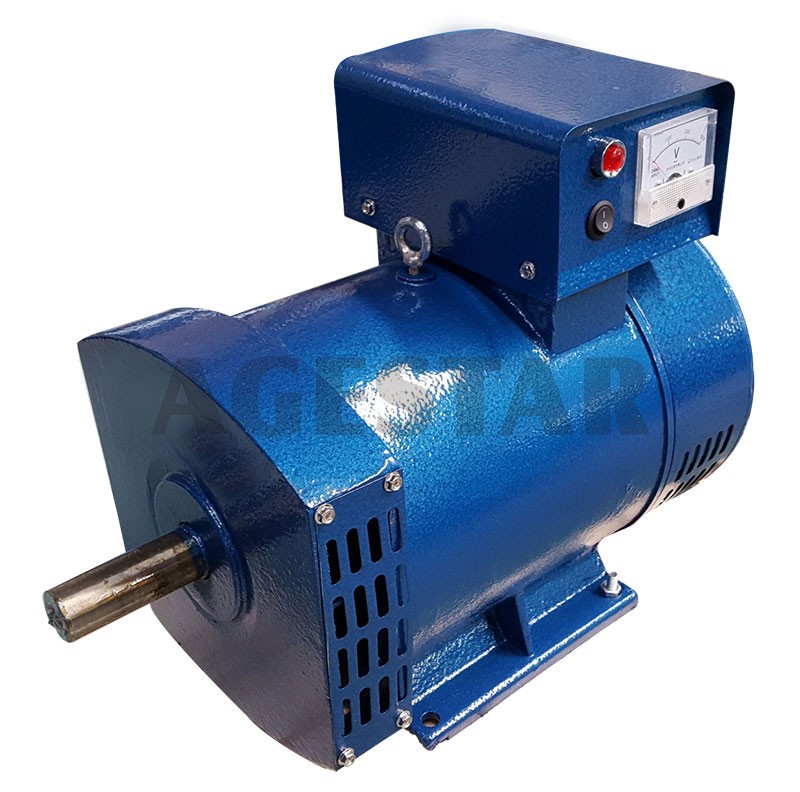

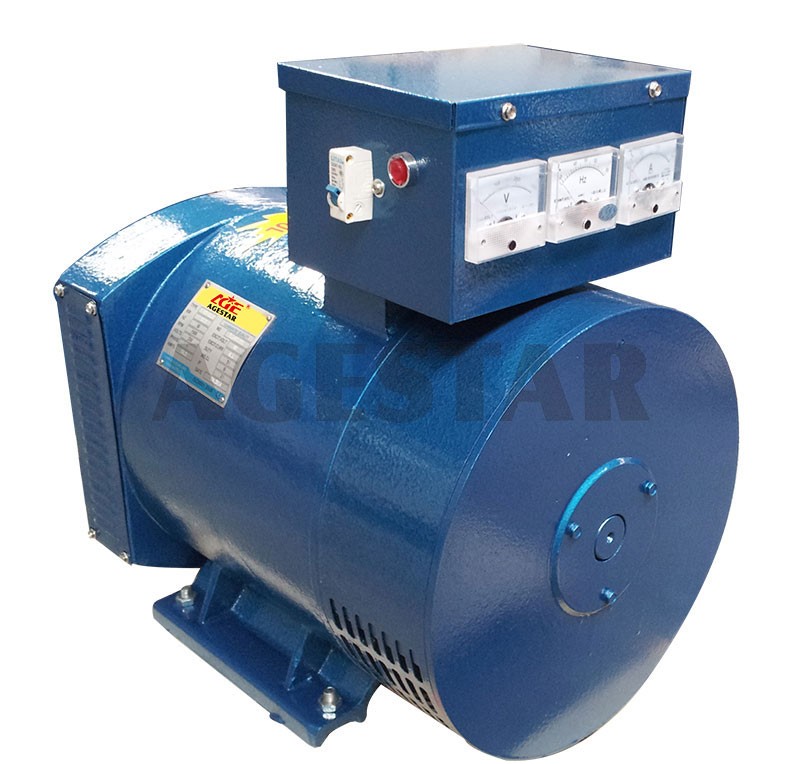

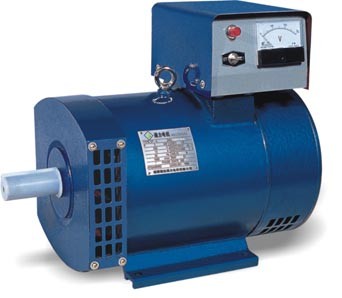

ST series single phase AC synchrous alternators

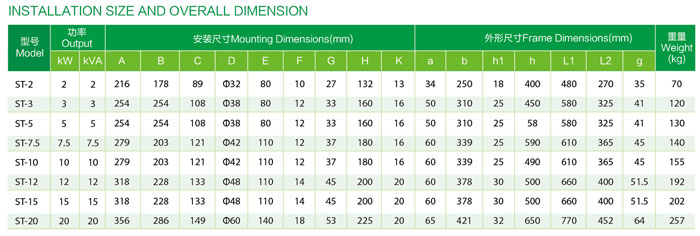

ST series generators are mainly designed to serve as power generating unit of small Capacity , which Supply electricity for lighting purpose in ships , for house - hold electric devices used in towns or villages . The construction of the generators is of dripproof, salient pole rotating field self excitation and constant voltage type . The alternator interior is used with high quality electric magnetic and electrical materials . Stator insulation is class B . These generators are elegant in appearance , tight in construction and easy maintain . IEC standard are adopted on dimension , these dimension are Suitable for using in Australia . Europe , America and Other countries with the end covers to be model B .
The generators adopt harmonic wave self - excitaion constant voltage system and automatic voltage control excitation constant voltage system , both of them have excellent dynamic characteristic performance , convenient and reliable in operation . Convenient and reliable in operation .
OPERATING CONDITIONS:
Under the following environment,The generator could be continous and rated running:
Above sea level:Not exceed 1000m.
Cooling air temperature:258~313k(-15℃~40℃）
Rated air damping:not exceed 90%
